PD3060E- PT100 6-chanel Modbus RTU with Display

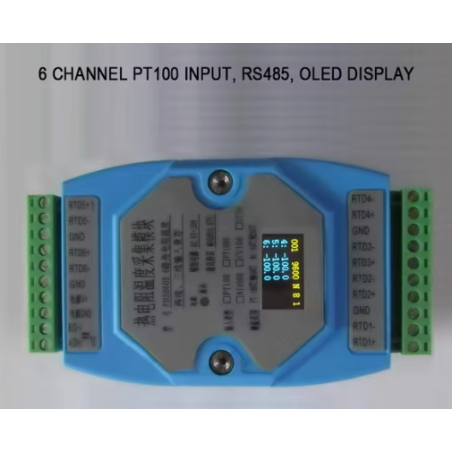

  • PD3060E- PT100 6-chanel Modbus RTU with Display
  • PD3060E- PT100 6-chanel Modbus RTU with Display from the side view
  • PD3060E- PT100 6-chanel Modbus RTU with Display, connection diagram
  • PD3060E- PT100 6-chanel Modbus RTU with Display, specifications
  • PD3060E- PT100 6-chanel Modbus RTU with Display, modbus protocol
  • PD3060E- PT100 6-chanel Modbus RTU with Display, scematics

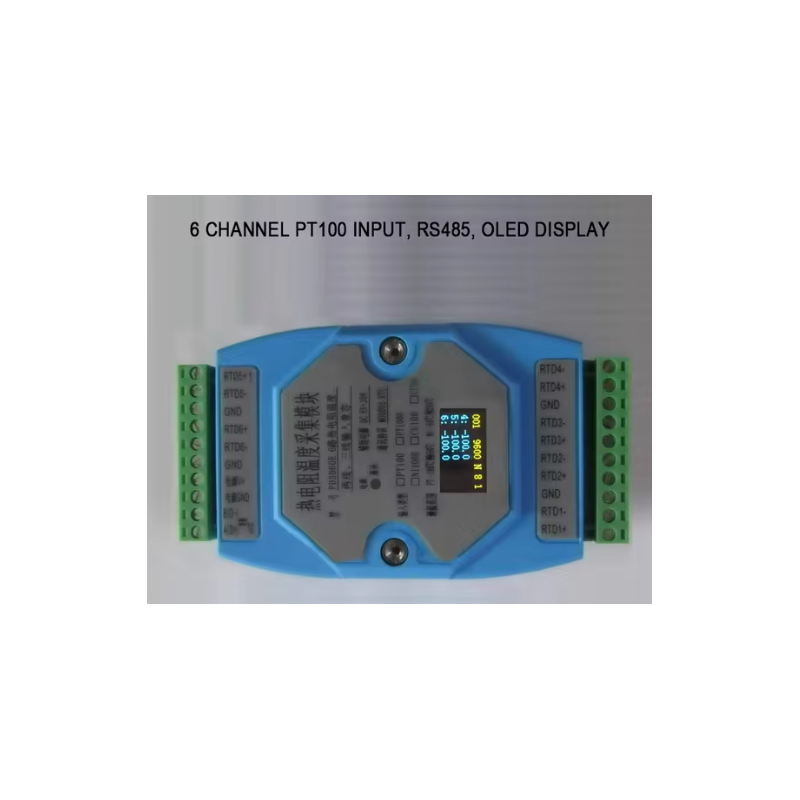

PD3060E- PT100 6-chanel Modbus RTU with Display

02-066

PD3060E- PT100 6-chanel Modbus RTU with Display

The PD3060E - PT100 is a PT100 temperature sensor module (thermoresistive device or RTD) that supports up to 6 sensor inputs. It can connect 2-wire and 3-wire PT100 sensors. The temperature reading is obtained using the RS-485 communication interface via the ModBus RTU protocol. Ideal for connection to PLC, HMI or monitoring systems supporting such communication interface.

This module can be connected to logger 1010 for data collection from a total of 6 PT100 sensors.

SEK 889.00
Tax included
Quantity
Product available for orders

Description

PD3060E- PT100 6-chanel Modbus RTU with Display

The PD3060E-PT100 is a PT100 temperature sensor module with OLED display (thermoresistive device or RTD) that supports up to 6 sensor inputs. It can connect 2-wire and 3-wire PT100 sensors. The temperature reading is obtained using the RS-485 communication interface via the ModBus RTU protocol. Ideal for connection to PLC, HMI or monitoring systems supporting such communication interface. This module can be connected to logger 1010 for data collection from total 6 PT100 sensors.

Specifications

  • Power supply range: 8-30 VDC
  • Power consumption: 0.6 to 1.6 watts
  • OLED Display
  • Inputs for 6 PT100 sensors.
  • Supports 2-wire and 3-wire PT100 connection.
  • Temperature reading range: -99.9°C to 650°C
  • Resolution: 0.1°C
  • Accuracy: 0.5 °C
  • Communication interface: RS-485, (Modbus)
  • Protocol: ModBus RTU, module is slave.
  • Maximum communication speed: 19200 bps (standard 9600, 8N1).
  • Mounting on 35 mm DIN rail.
  • Pluggable/removable connection terminals.
  • Dimensions: 88 x 72 x 59 mm
  • Module operating temperature: -35°C to 50°C.
  • LED for power/connection indication.
  • Compatible with most systems supported by PLC, HMI and ModBus RTU via RS-485.
