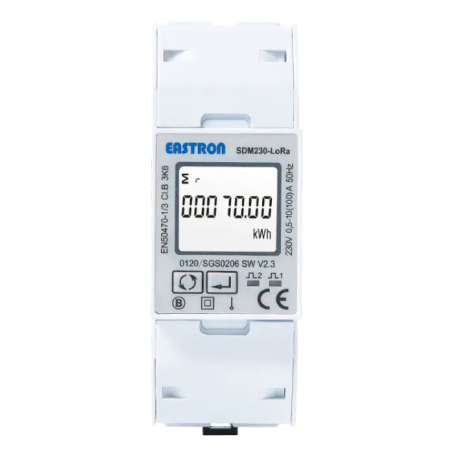

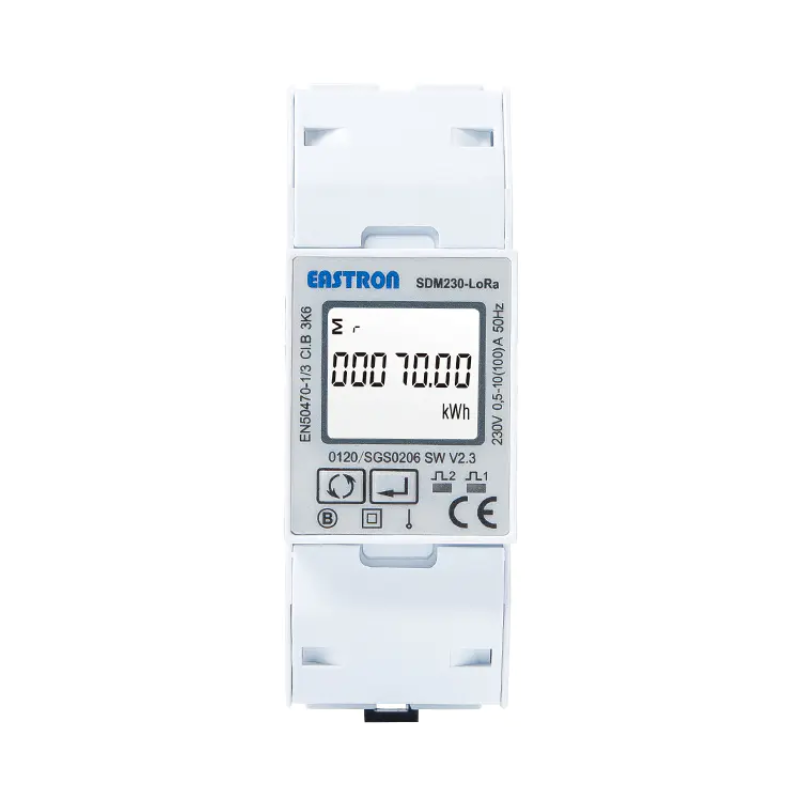

The SDM230 LoRa WAN MID
Single-phase electricity meter SDM230 LoRa WAN is a new generation single-phase multi-function electricity meter with wireless communication, the meter has been built Lora WAN module. Range up to 3 km.
The electricity meter can wirelessly send data to the nearest LoRa WAN gateway, or to an existing local LoRa WAN network.
The device measures and displays properties of single-phase two-wire (1P2W), single-phase three-wire (1P3W) networks. The measurement parameters include voltage (V), current (A), frequency (Hz), power (kW / kVar / kVA), import / export / total energy (kWh / kVarh).
Can be used for invoicing of energy consumtion due to the MID-certification.
Data sent on LoRa WAN
- Total Power factor
- Import active energy in kWh
- Export activ energy in kWh
- Active energy total counter in kWh
- Import reactiv energy
- Export reactiv energy
- Total kvarh
Product Parameters
Specifications:
- MID-certified
- Input Voltage: 230VAC (80%~120%)
- Input Current: 0.5~10(100)A (Max 100 A)
- Frequency: 50/60Hz
- Network: L+N
- Output: LoRa
- Communication Speed: 5.17~0.27kbps
- Spreading Factor: 7~12
- Measurements: V,A, Hz, PF, kWh, kVarh, dmd, P,Q,S, etc.
- Electromagnetic Compatibility: IEC61326-1:2013
- Installation Category: CAT I
Accuracy:
- Voltage 0.5% of range maximum, Current 0.5% of nominal
- Frequecy: 0.2% of mid-frequency
- Power factor: 1% of uity (0.01)
- Active power( W): ±1% of range maximum
- Reactive power (VAr):±1% of range maximum
- Apparent power(VA): ±1% of range maximum
- Active energy (Wh): Class 1 IEC 62053-21
- Reactive energy (VARh): ±1% of range maximum
- Total harmonic distortion: 1% up to 31st harmonic
- Response time to step input: 1s, typical, to＞99% of final reading, at 50Hz
Environmental Characteristics:
- Operating Temperature: -25°C to 55°C
- Storage Temperature: -40°C to 70°C
- Humidity Rating: <95% RH at 50 °C (non-condensing)
- Pollution Degree: 2
- Altitude: 2000m
- Vibration: 10Hz to 50Hz, IEC 60068-2-6
Mechanical Characteristics
- Weight: 250g
- IP Degree of Protection (IEC 60529): IP51 front display
- Dimensions (WxHxD): 99x36x63
- Mounting Position: Vertical
- Panel Thickness: 1~5mm
- Material of meter case: Self-extinguishing UL 94 V-0
- Mechanical environment: M1
Safety
- Measurement Category: Per IEC61010-1 CAT III
- Current Inputs: Require external Current Transformer for Insulation
- Over voltage Category: CAT III
- Dielectric Withstand: As per IEC 61010-1 Double Insulated front panel display
- Protective Class: II
Communications
- Interface standard and protocol: LoRa WAN
- Network: Star/ Cluster
- Frequency: 868Mhz
- Communication distance: <3000m
