Power supply for electric car charging station
  • Power supply for electric car charging station
  • Power supply for electric car charging station
  • Power supply for electric car charging station
  • Power supply for electric car charging station

Power supply for electric car charging station

26-001
Grade
Write your review

Electric box for charging stations


Complete power supply for charging stations to electric cars and charging hybrids 10-63A (Select in the drop-down list).

Contains Electricity Meter SDM630 Modbus MID, Chint NL210 3-phase earth leakage circuit breaker TYP B and three-phase automatic circuit breaker 10-63A.

Choose fuse size
SEK 2,999.00
Tax included
Quantity
In Stock (38 products in stock)
38 Items

Grade
Write your review
Description

Electric box for charging stations

Complete power supply for charging stations to electric cars and charging hybrids 10-63A (Select in the drop-down list).

Contains Electricity Meter SDM630 Modbus MID, Chint NL210 3-phase earth leakage circuit breaker TYP B and three-phase automatic circuit breaker 10-63A.

The electricity meter has a three-row display and shows the measured values separately for each phase, total counters are available. Read more about the electricity meter HERE.

This power station can also be monitored with our data logger Logger 3030 PRO Modbus, measurement values and statistics can be displayed in our cloud solution which then accesses via any platform, mobile, flat or desktop computer wherever you are in the world. Read more about Logger 3030 HERE, HERE or HERE.

The kit is delivered in loose parts, a qualified electrician is needed for installation.

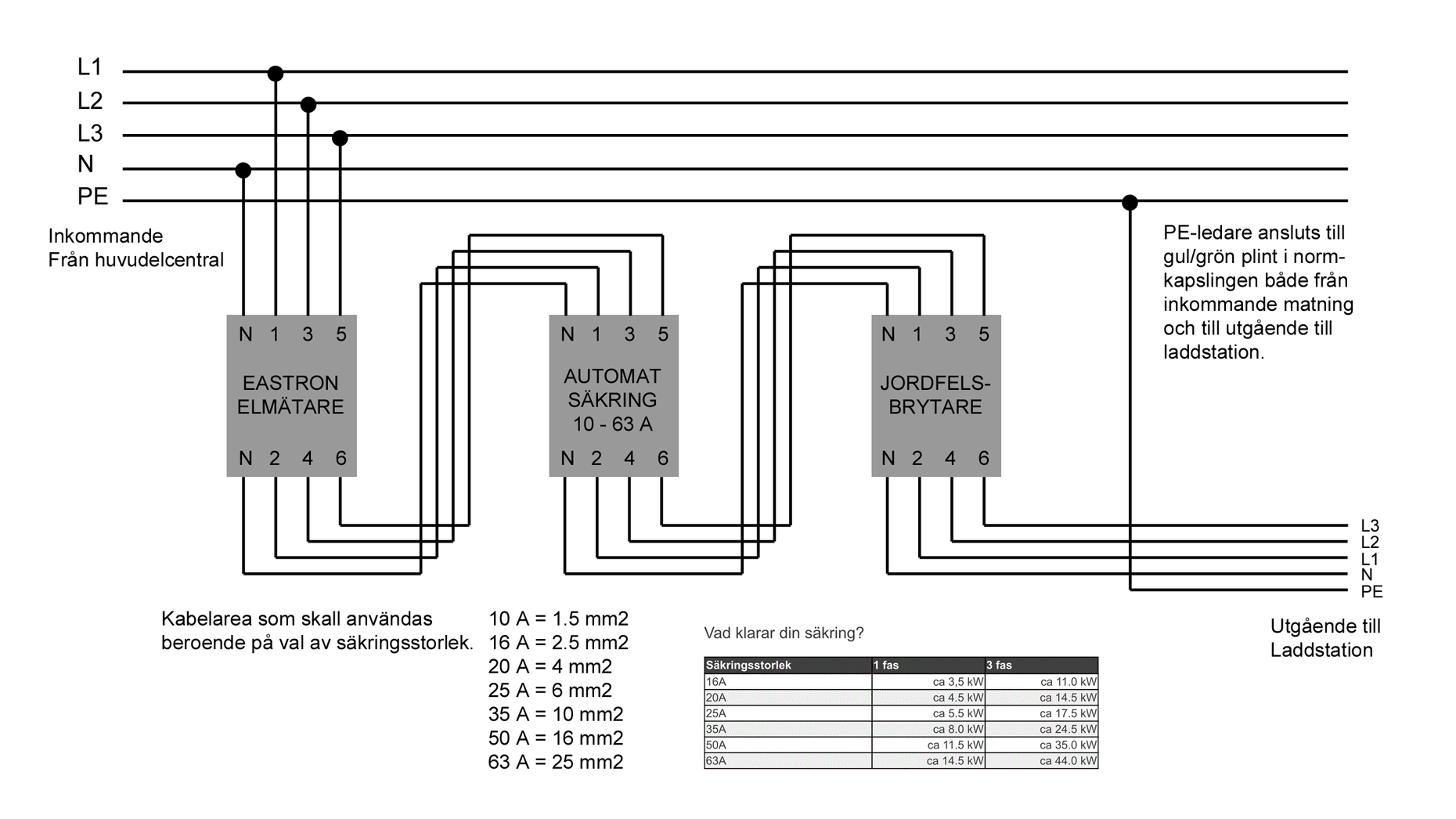

Scroll down to see / download the electrical diagram.

Product Details
26-001
0
38 Items
Grade
Write your review
